What can Hasselblad do better on the CFV 100c/907x

A list of highly thought, curated, and under looked improvement points to their digital system. 8 things that if I knew, I would probably not get the digital back...

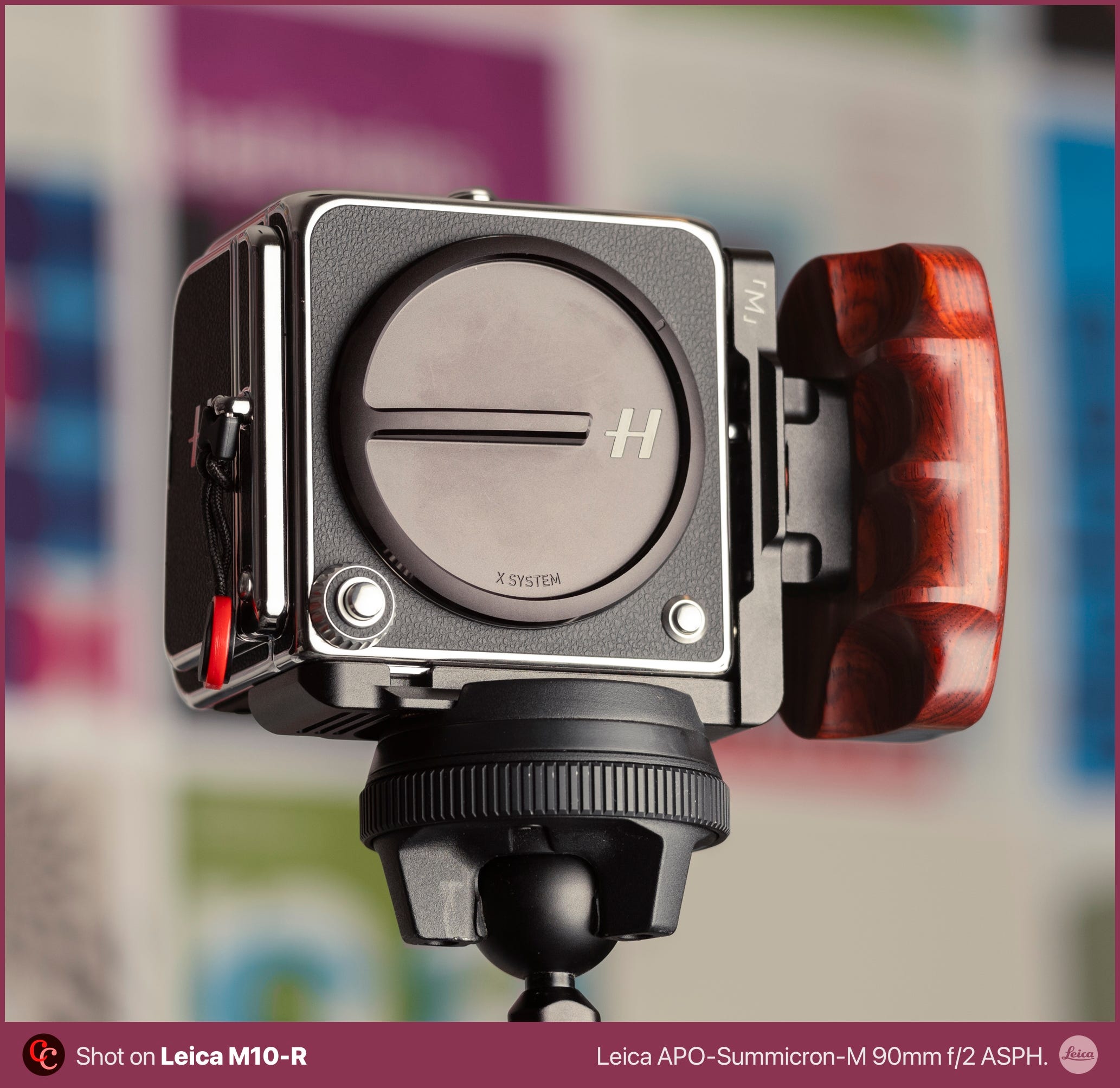

Look at that beauty!

Hasselblad cameras. What to talk about them? Their excellence come from decades of engineering, and it’s certainly a polished product built with the best of the best in mind. Everything is good: the grip and body is built to last, the optical quality is better than Leica. The color science? Unmatched. The interface and menus are simple and straight to the point, the mobile app (Phocus 2) is the best I’ve seen (and I’m comparing with the Leica FOTOS, which I thought was the best), the company’s photography heritage is legendary, it is the camera that mankind brought to the moon for the first time!

But is it perfect? Well, we all know there’s no such thing, right?

Hasselblad has always been known for excellent user experience (UX) standards. Victor Hasselblad and his designs performed product design and UX practices way before it had a name! The V-system is shockingly well-designed, even the way the camera needs to be handheld was thought of.

If you don’t know what the V-system is, check out this live streaming episode:

The V-system offer the perfect film shooting experience. But, did this experience is still there? Does Hasselblad still carry these excellent UX standards in their new product lineage? Are the new Hasselblad cameras, like the digital back and the X2D ii still on that high bar?

I recently got a 907x camera and a digital back (well. the digital back is the camera, the 907x is just an interface that connects the lens to it. That said, the considerations I will do in this post are most regarding the digital back and the 907x, but some of them might be applicable to the X2D system as well.

Over a month using it extensively, I built a list of things that Hasselblad can do better, a list that would make the 907x and the cfv100c perfect (at least to my taste). I compared with other high-end cameras and their features, like the Leica Q system, the Fuji GFX line, etc, along with decades of experience with my photography, as well as my experience in product design and UX.

My goal is that this post reaches Hasselblad, and hopefully they implement these in the future.

Let me enumerate them into titles, so it makes easy to dissect each aspect separately, I’m adding by order of severity (like how bad/annoying it is right now).

I know that probably Hasselblad’s product design team’s rationale was to keep things simple, and I appreciate that. Their cameras are the type of product that does one thing and does it well. That keeps the menus simple, and again, I appreciate it a lot, but some further customization and details could be added to make the cameras more to the photographer’s taste.

1. 907x rotary dial customization

By far, this is the biggest nonsense in the 907x system, and it almost looks deliberate that Hasselblad doesn’t care.

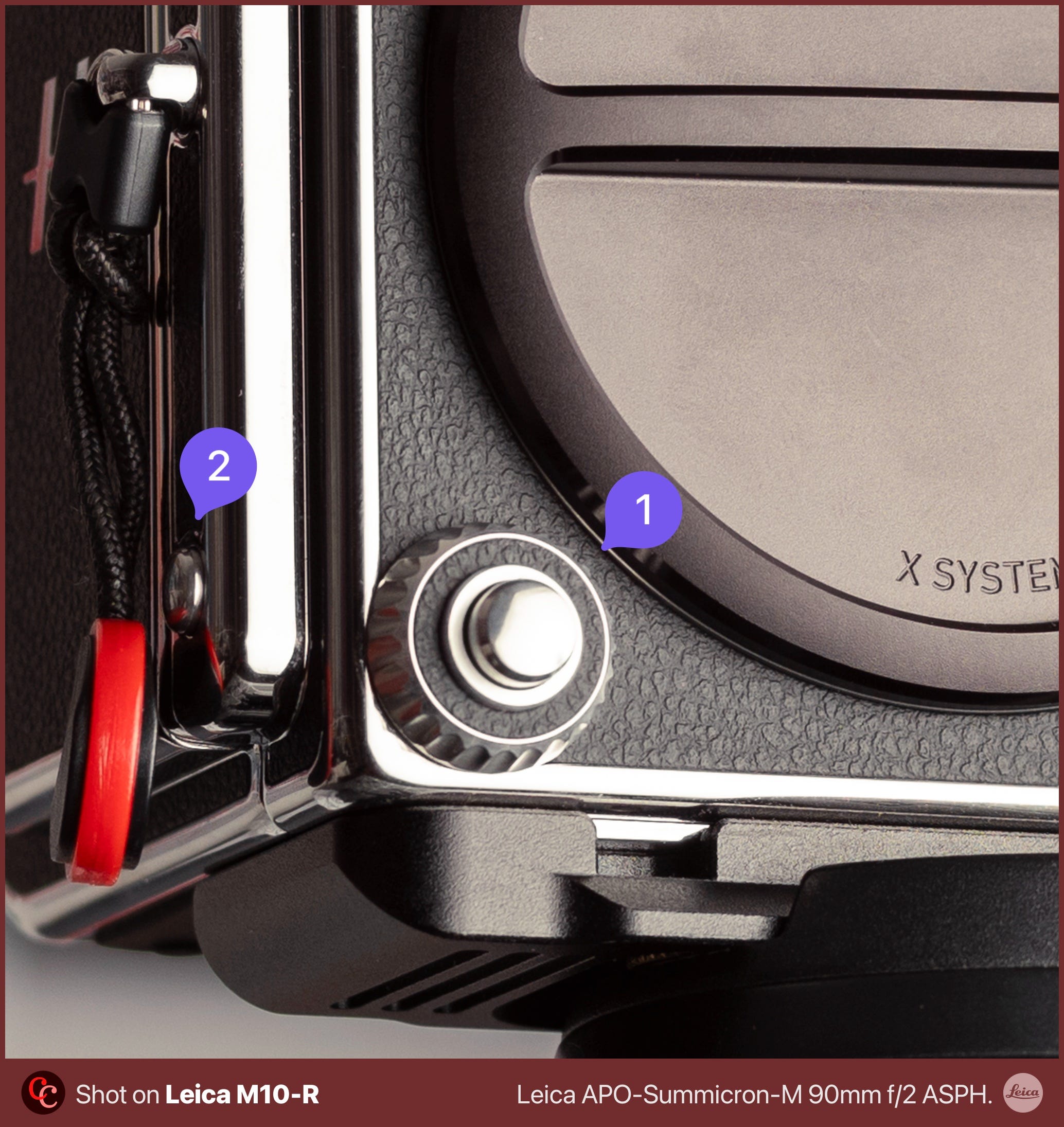

(1) is the shutter release button with a rotary dial. (2) is a Fn. button.

The 907x body has a rotary dial around the shutter button (1). That rotary dial changes the aperture when you operate the camera in Aperture Priority mode, or change the shutter speed when the camera is on Shutter Priority mode.

But when the camera is set to manual mode, the rotary dial changes the aperture that that’s it, and if you want to change the shutter speed, you have to operate it while holding a Fn button (2) on the right side of the camera.

This operation is slow and uncomfortable. This Fn (2) button should at least operate on “Toggle” mode, not “Hold”, meaning that you press it to alternate between the fixed functions of what the rotary dial does, because pressing a button and rotating a dial at the same time is just nuts.

If as least it changed the shutter speed by default, I could use the lens aperture ring (available on select XCD lenses [the most expensive ones only]) and have two tactile functions to change in parallel.

In addition, the user should be able to override what they want to do with the rotary dial in terms of clockwork/counterclockwork operation. This is currently not possible.

Big potential UX improvement with the rotary dial.

2. Haptic feedback (or beep) when horizontal

Hasselblad cameras are known for landscape photography due to their acuracy with perfect aligning the camera for shots.

Even when using the V-system and going full analog, you can have the option of having a crosshair on the focusing screen, to make sure the scene is perfectly aligned to whatever you want (horizon, sea level, antenna on top of building, etc.)

Their digital cameras offer something called “Spirit Level”, which is basically an electronic acelerometer that gives you a reading when the camera is leveled.

Turns out that when you are using the camera out in the sun, you can barely see the details on the LCD screen to check the electronic bubble level. If the camera had a feature to beep when it’s perfectly horizontal or vertical, it would be very sweet and make the life of landscape (or architecture) photographers a lot easier.

I think Apple does that with their camera app — when you have it fully horizontal, it gives you a haptic feedback. It doesn’t hurt, hardware is already there.

3. Instant leaf shutter upon XCD lens connect

The shutter on XCD lenses (and when using it with the V-system) is not in the camera body, but on the lens. They all feature a leaf shutter, which keeps closed until it’s shot time (as any other mechanical shutter).

Sometimes, we want to use the Electronic Shutter in the camera, and that comes with consequences, some bad ones.

(spoiler: the electronic shutter sucks and has INSANE AMOUNTS of rolling shutter)

The camera firmware should default to the lens’ leaf shutter when an XCD lens is attached. The user should opt-in for that feature. That would be neat.

I use the electronic shutter when I want to use my Leica lenses with adapters.

4. Customization of aperture ring direction

This one is very basic. The camera should allow the user to override the direction of what the aperture ring does. I would like to have the option to configure this in order to match the lens I am used to operate.

5. Customization of focus ring for P lenses

P lenses are the ones that only have one ring on it, and this ring controls the manual focus. That’s it.

I got shocked when I got a P lens and realized that I can’t rebind that ring on the lens to operate as the aperture ring, swapping what the ring does by the software in the camera.

C’mon, these lenses are all “fly by wire”, they are electronic, this rebind is obviously possible, it’s not like the lens ring is mechanically attached to helicoids or so.

Let us have multiple controls! Shutter speed on the rotary dial, and aperture on the P lenses!

6. No lossless compression on RAW files

This one wouldn’t hurt. There are lossless compresion algorithms that reduce file size without compromise. At the mark of 200 MB per RAW file with no compression, this requires the user to rethink the way storage is managed.

I know that medium format cameras aren’t for spraying and praying, I know. But here’s something Hasselblad didn’t think of when designing the CFV100c digital back: it doesn’t have IBIS, and by not having IBIS, photos might get camera shake, to eliminate that, guess what photographers do? They take 2, 3, 4 photos, for then to elect the less shaken one: that’s a Gigabyte there…

A lossless compression feature wouldn’t hurt, to reduce file size a little bit and help. They have HEIF as an option (at least in the CFV100c), but I’m unsure about the quality on these. If you do know, please let me know via comments.

7. Gyro AF lock

The Leica Q system showed me something I got fascinated, something incredible. It’s the gyro AF lock. A feature that I’ve only seen in the Leica Q cameras, and nowhere else.

It works like this: when you set a focus point and rearrange your angle to compose the shot, the camera uses the gyro information to make the focus point move to the point you locked.

The Hasselblad has a gyro in it, that’s how the virtual bubble level (or Spirit Level, as they call it) work. Nothing in terms of hardware stops them from implementing this gyro AF lock funcionality, so we don’t need to touch the LCD screen (or operate focus joysticks) all the time between shots.

8. Poor LCD control

When using the CFV digital back with a V-sytem camera, the screen pops up with a photo preview for each shot. I would really enjoy a way to turn that off and enjoy a full LCD-less experience when shooting with my vintage equipment — screen all black.

Also, the controls under the “Display” settings on the menu is ridiculously poor, like, all you can choose is Brightness, VRR (variable refresh rate), show and overexposure warning. When you plug the 907X, it gives you the option of disabling preview, but not when the back is used with a 500 system.

We don’t need a “Sony level” complexity here, but some more things like being able to shut off post-shot preview would be highly appreciated here.

Again, I know Hasselblad kept things simple, otherwise it becomes a Fujifilm menu, which requires entire dedicated YouTube channels (like Pal2Tech) just to explain where to find things. I know their intent is to make things simple and let photographer focus on photography and nothing else. I understand that, but I believe that all these small details would add agility to a system that is known for being slow. I hope Hasselblad folks read this post and apply these improvements!

In another post, I will tell the higlights of the X system (907x/cfv100c, or the “digital back”). I already wrote one, but that post was more to highlight the benefit of having a digital system that looks like analog, this next post I’m writing will focus on the highlights of the 907x as a purely digital ecosystem.
